Harmar Summit AC Straight Outdoor Stair Lift

spacer
Call 1 (888) 301-2610 for buying advice and our lowest prices!
spacer

Add to Cart


Price

$4,085.00

(Plus Shipping)

Product Name

Harmar Summit AC Straight Outdoor Stair Lift


Product Review
(0)
(0)

Weight Limit350 lb
Drive TrainCable
Battery PoweredNo
Track TypeAluminum
Seat Width17.5"
Seat Depth14"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsNo
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, In Use24.5"
Track Width8"
Call Stations IncludedWired
Rail Angle, Min30°
Unit Footprint, Parked14"
Rail Angle, Max45°
Digital Diagnostics DisplayNo
Track Footprint12"
Key LockNo
The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for protection of outside elements.
(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)

Outdoor Stair Lifts are not intended for use in snow and ice


Features:
  • Header cover, internal chassis cover and a large weatherproof cover included
  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Seat cushions in exterior marine grade vinyl
  • Separate controls at top and bottom of stairs

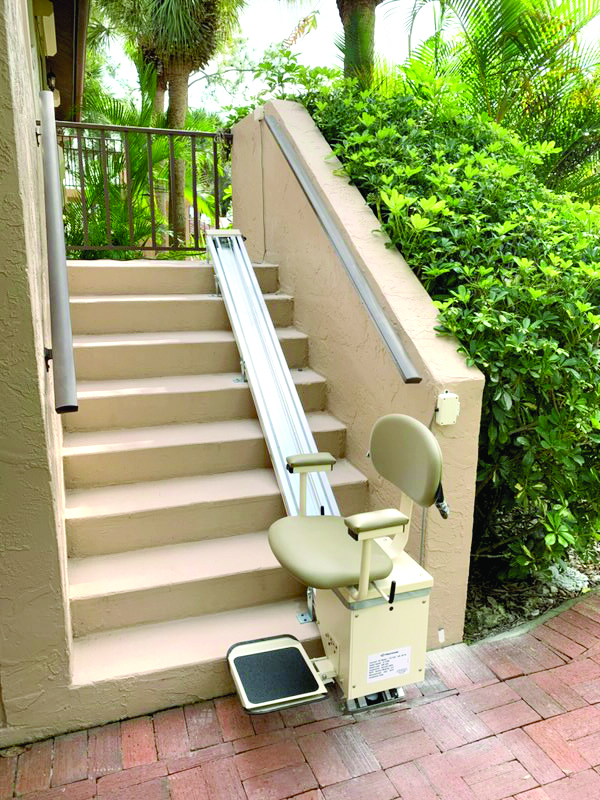

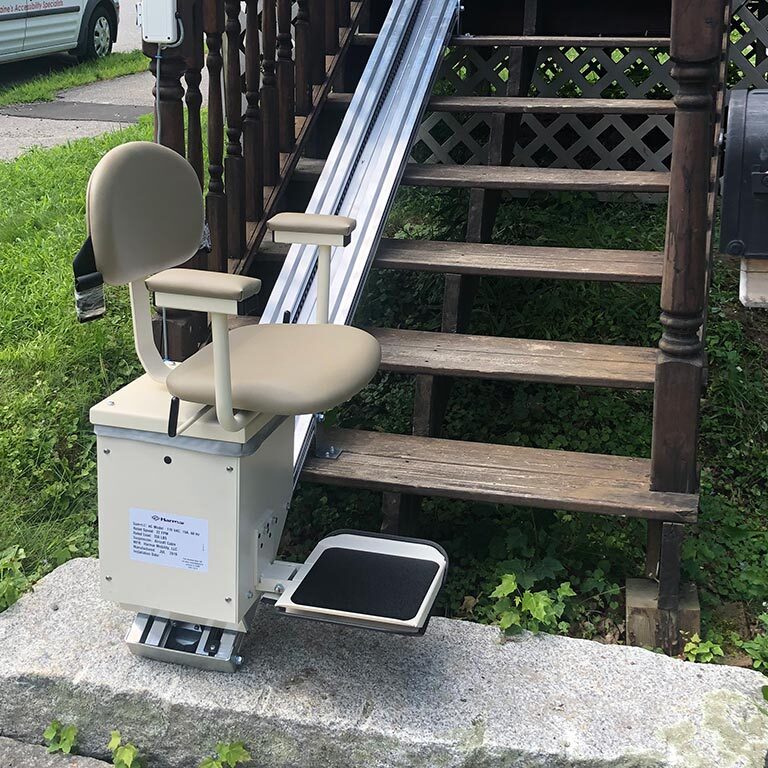

  • Showing Lift Installed on Outdoor Stairs

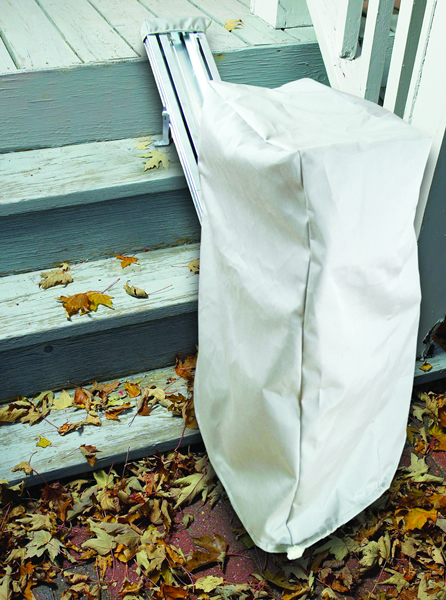

  • Showing with Lift Covered against Weather
spacer
spacer
spacer
Stair Lift Overview

Lift Options Available

  • Vinyl Seat Color
    • Light Almond  $0.00Light Almond Seat - Summit Stair Lift
  • Seat Size
    • 17.5" W  $0.00No Image
  • Options
    • Keylock Package - Keyed Base & Keyed Call-Send Controls  $443.00No Image
    • Keyed Base Only  $236.00No Image
    • Grocery Basket  $293.00No Image
  • Track Length (15' is Standard *)
    • * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.  $0.00No Image
    • 15' of track * (180")  $0.00No Image
    • Custom Cut track Less Than 15'  $150.00No Image
    • Track length 16' and over reduces weight capacity to 250 pounds  $0.00No Image
    • Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity  $350.00No Image
    • Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity  $565.00No Image
    • 20' of track Uncut 250 lb Capacity  $250.00No Image
    • 25' of track Uncut 250 lb Capacity  $565.00No Image
  • Orientation (looking UP the staircase)
    • The stair lift will be on the left  $0.00No Image
    • The stair lift will be on the right  $0.00No Image
  • Installation
    • NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.  $0.00No Image
    • Self Installation  $0.00No Image
    • Nationwide Installation (Not available in Oregon or Washington)  $599.00No Image
    • Nationwide Measurement Service - Requires an Installation Selection (Not available in Oregon or Washington)  $749.00No Image
    • Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)  $437.50No Image
  • Installation Permit
    • License / Permit / Inspection  $425.00No Image
    • Permit and Inspection  $350.00No Image
    • Permit (Required in Kentucky for EACH item being installed)  $87.50No Image
    • Permit & Inspection (Required in Georgia for EACH item being installed)  $250.00No Image
    • Permit & Inspection (Required in Alabama. Additional units incur additional fee.)  $300.00No Image
  • Installation Special Cases
    • Installation On Concrete, Steel, or Tile Stairs  $300.00No Image
    • Installation In Remote or Limited Access Location  $285.00No Image
    • Existing Stair Lift Removal  $499.00No Image
    • Additional Charge for Installation in the States of: New York, and Massachusetts  $150.00No Image
  • Measurements
    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.  $0.00No Image
    • 1. Overall length  $0.00No Image
    • 2. Top stair to bottom stair  $0.00No Image
    • 3. Staircase width  $0.00No Image
    • 4. Bottom clearance  $0.00No Image
    • 5. Rise of one step  $0.00No Image
    • 6. Tread of one step  $0.00No Image
    • 7. Diagonal  $0.00No Image
    • 8. Door at the top  $0.00No Image
    • Need help measuring? Print out the "How to Measure" worksheet.  $0.00No Image
