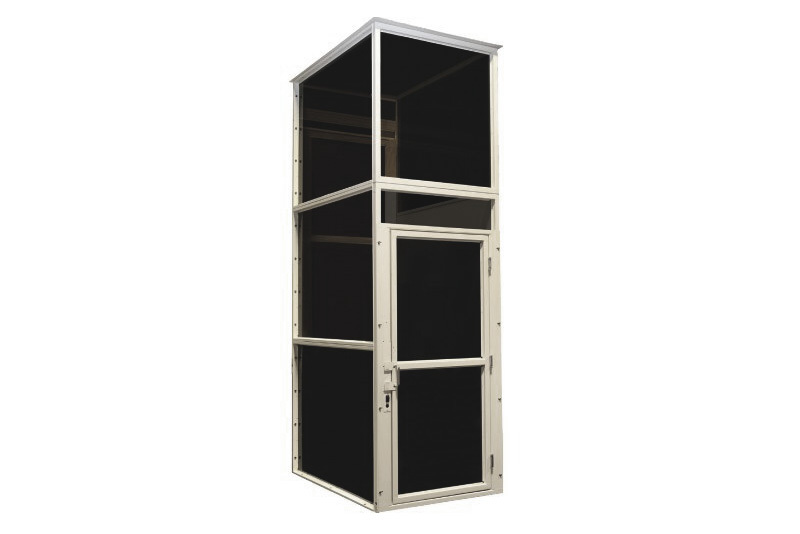

Harmar Highlander Enclosed VPL

spacer
Call (888) 301-2603 for buying advice and our lowest prices!
spacer

Add to Cart


Price

$14,620.00

(Plus Shipping)

Product Name

Harmar Highlander Enclosed VPL

Warranty

click here for warranty


Product Review
(0)
(0)

Weight Limit750 lb
Lift Speed (FPM)10
Arrives AssembledYes
Drive System1" diameter ACME Scrwe
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Emergency Stop Platform ControlPit Switch Standard, Safety Underpan Option
Alarm ButtonLighted Emergency Stop with Alarm Option
Keyed Platform ControlOptional
Call-Send ControlsOne per Stop Included
Optional Call-Send ControlsKeyed and/or Wireless
Platform TypeSolid with Non-Skid Coating
Platform Size36" x 60" x 42" (34" Usable)
Optional Platform Sizes42"x 60" (40" Usable)
Platform ConfigurationStraight Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Upper Access RampNone Available
Lower Access Ramp36" or 42" Fixed Ramp
Grab RailOptional
Guard Panel42"
Maximum Stops3
Other OptionsFire-Rated Doors, Automatic Door Openers
Authorized AmeriGlide Stair Lift Provider
The Highlander Enclosed VPL represents a new generation and evolution in VPL's. New technologies introduced in the Highlander Enclosed VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Highlander is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
  • Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.



spacer
spacer
spacer

Lift Options Available

  • Included for Stratos Enclosed VPL
    • Lower Landing Door  $0.00No Image
    • Upper Landing Gate  $0.00No Image
    • Pit Switch  $0.00No Image
  • Lifting Height
    • 53" MAXIMUM LIFT HEIGHT  $0.00Harmar Highlander VPL
    • 77" MAXIMUM LIFT HEIGHT  $1,210.00No Image
    • 101" MAXIMUM LIFT HEIGHT  $3,520.00No Image
    • 125" MAXIMUM LIFT HEIGHT  $6,270.00No Image
    • 149" MAXIMUM LIFT HEIGHT  $7,920.00No Image
    • 173" MAXIMUM LIFT HEIGHT  $9,570.00No Image
  • Enclosure Kit (Must Match VPL Lifting Height Above)
    • ENCLOSURE KIT FOR 53" MAXIMUM LIFT HEIGHT  $0.00No Image
    • ENCLOSURE KIT FOR 77" MAXIMUM LIFT HEIGHT  $750.00No Image
    • ENCLOSURE KIT FOR 101" MAXIMUM LIFT HEIGHT  $1,500.00No Image
    • ENCLOSURE KIT FOR 125" MAXIMUM LIFT HEIGHT  $2,250.00No Image
    • ENCLOSURE KIT FOR 149" MAXIMUM LIFT HEIGHT  $3,000.00No Image
    • ENCLOSURE KIT FOR 171" MAXIMUM LIFT HEIGHT  $3,750.00No Image
  • Enclosure Width
    • Enclosure Width must Match Platform Width Selected Below  $0.00No Image
    • 36" Wide Enclosure  $0.00No Image
    • 42" Wide Enclosure  $1,350.00No Image
  • Enclosure Material
    • Steel Panels  $0.00No Image
    • Acrylic Panels  $1,350.00No Image
  • Residential/Commercial
    • Residential  $0.00No Image
    • Commercial (Includes Lighted E-Stop w/Alarm, and Handrail)  $325.00No Image
  • Power Source
    • AC POWERED  $0.00No Image
    • READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah  $995.00No Image
    • READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah  $1,315.00No Image
  • Use Options
    • OUTDOOR USE  $179.00No Image
    • COLD WEATHER PACKAGE (FOR STANDARD UPS)  $215.00No Image
    • COLD WEATHER PACKAGE (FOR PLUS UPS)  $422.00No Image
  • Tower Orientation
    • TOWER ON THE LEFT  $0.00No Image
    • TOWER ON THE RIGHT  $0.00No Image
  • Number of Stops
    • 2 STOPS  $0.00No Image
    • 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL  $985.00No Image
  • Platform Type (Width, Depth, Height)
    • Select From Options Below  $0.00No Image
    • Straight Through (180 degrees)  $0.00No Image
    • 36 X 60 X 42 STRAIGHT THROUGH PLATFORM  $708.00No Image
    • 42 X 60 X 42 STRAIGHT THROUGH PLATFORM  $886.00No Image
    • 90 Degree  $0.00No Image
    • 36 X 60 X 42 90 Degree LEFT PLATFORM  $1,058.00No Image
    • 36 X 60 X 42 90 Degree RIGHT PLATFORM  $1,058.00No Image
    • 42 X 60 X 42 90 Degree LEFT PLATFORM  $1,236.00No Image
    • 42 X 60 X 42 90 Degree RIGHT PLATFORM  $1,236.00No Image
    • Same Side Entry/Exit (0 degrees)  $0.00No Image
    • 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM  $1,058.00No Image
    • 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM  $1,236.00No Image
  • Platform Controls
    • Paddle Controls with Emergency Stop Button  $0.00No Image
    • Emergency Stop Alarm with Lighted Button - Included  $158.00No Image
  • Platform Options
    • Keylocks for Controls  $90.00No Image
    • CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)  $129.00No Image
  • Handrail (for Residential VPL)
    • No Handrail (for Residential VPL)  $0.00No Image
    • 54" Handrail (for Residential VPL)  $125.00No Image
    • 60" Handrail (for Residential VPL)  $158.00No Image
  • Ramp Type
    • Pit, no Ramp, (Pit Switch is Included)  $0.00No Image
    • 36" FIXED RAMP  $0.00No Image
    • 42" FIXED RAMP  $90.00No Image
  • Landing Gate Call/Send
    • CALL-SEND ROCKER SWITCH FOR LANDING GATE  $120.00No Image
    • CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE  $200.00No Image
  • Fire Rated Doors
    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH  $2,800.0036" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH
    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH  $2,800.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH  $3,458.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH  $3,458.00No Image
    • 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH  $3,293.00No Image
    • 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH  $3,293.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH  $3,958.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH  $3,958.00No Image
  • Automatic Opener
    • AUTOMATIC OPENER FOR LANDING GATE  $2,630.00No Image
    • AUTOMATIC OPENER FOR LANDING DOOR  $2,630.00No Image
  • Interlocks
    • INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.  $0.00No Image
    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH  $493.00No Image
    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH  $493.00No Image
  • General Enclosure Options
    • 3-Sided Enclosure (required for non-Enter/Exit Same Side)  $493.00No Image
    • Enter/Exit Same-Side Upgrade  $493.00No Image
    • 90 Degree Upper Landing Upgrade  $979.00No Image
    • Upper 6'8" (20.7 m) Enclosure Door Upgrade LH  $829.00No Image
    • Upper 6'8" (20.7 m) Enclosure Door Upgrade RH  $829.00No Image
    • Middle 6'8" (20.7 m) Enclosure Door LH  $1,965.00No Image
    • Middle 6'8" (20.7 m) Enclosure Door RH  $1,965.00No Image
    • 42" Wide Upper 6'8" Enclosure Door Upgrade  $1,315.00No Image
    • Acrylic Door Panel (Each)  $329.00No Image
    • Platform Safety Pan  $493.00No Image
    • Acrylic Roof (Requires 6'8" Enclosure)  $829.00No Image
    • Power Ventilation System (for Enclosure WITH Roof)  $2,458.00No Image
  • Top Door Upgrade (all doors include extra side panels)
    • Upper Landing Gate is Included  $0.00No Image
    • 36" Steel LH  $2,472.00No Image
    • 36" Steel RH  $2,472.00No Image
    • 36" Acrylic LH  $3,622.00No Image
    • 36" Acrylic RH  $3,622.00No Image
    • 42" Steel LH  $2,758.00No Image
    • 42" Steel RH  $2,758.00No Image
    • 42" Acrylic LH  $3,908.00No Image
    • 42" Acrylic RH  $3,908.00No Image
  • Top Extra Side Panels (add to included Top Gate)
    • No Panels Needed - Ordered Top Door Upgrade  $0.00No Image
    • 36" Steel  $850.00No Image
    • 36" Acrylic  $850.00No Image
    • 42" Steel  $1,136.00No Image
    • 42" Acrylic  $1,136.00No Image
  • Call Send Options
    • CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)  $215.00No Image
    • KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)  $290.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 1 LANDING  $325.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS  $650.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS  $972.00No Image
    • In-Frame Call Station (EACH)  $179.00No Image
  • Additional Options
    • PLATFORM SAFETY PAN  $493.00No Image
    • TOWER BRACE WITH BRACKET  $250.00No Image
    • PHONE JACK  $210.00No Image
    • EMERGENCY TOWER LIGHT, BACK-UP  $215.00No Image
    • EXTRA KEYS (EACH)  $29.00No Image
    • CUSTOM COLOR (ALLOW 6-8 WEEKS)  $0.00No Image
    • FLOAT LEVEL SWITCH  $215.00No Image
    • lighted E-Stop w/Audible Alarm (for Residential Units)  $158.00No Image
  • State Required Inspections / Permits
