AmeriGlide Rave Curved HD Stair Lift

spacer
Call 1 (888) 301-2610 for buying advice and our lowest prices!
spacer

Add to Cart


Price

$12,010.00

(Plus Shipping)

Product Name

AmeriGlide Rave Curved HD Stair Lift

Warranty

click here for warranty


Product Review
(0)
(0)

Weight Limit350 lb
Drive TrainSteel Rack and Pinion
Battery PoweredYes
Seat Width21"
Seat Depth15"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, Parked16"
Rail Angle, Max60°
Digital Diagnostics DisplayNo
WarrantyLimited Lifetime, 2-Year Parts, 1-Year Battery
Key LockNo

Return Policy

Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.

Authorized AmeriGlide Stair Lift Provider
The AmeriGlide Rave Curved HD Stair Lift is one of a kind, made just for you and assembled in the USA. The design is crafted to fit your needs, staircase, and décor.

This stair lift is built to last. Every staircase that is fitted with a AmeriGlide Rave Curved HD is measured with a calibrated camera kit for digital accuracy. Constructed with highly durable steel, custom precision-bent rails, and finished by experienced craftsmen, this true curved rail is highly engineered to give you an extraordinarily smooth ride.

Your unique path to independence will allow you to enjoy time with your family and your home on every level giving you independence, freedom and the quality of life you deserve.

The build and delivery methods also allow installers to work more quickly and efficiently when they arrive at your home. The lift can be installed with minimal disruptions to you.

Perfect for a stairway with a 90 degree turn, 180 degree, or even a spiral staircase. The AmeriGlide Rave Curved HD can even be built to accommodate multi-story applications.

An ergonomically-designed seat features swivel seat and "flip-up" arms to make entry and exit easier.

Custom color and fabric options are available to help make the AmeriGlide Rave Curved HD Stair Lift a tasteful addition to any home.

This stair lift must be installed by trained installers. It is not user installable; however, the installation cost is included in the shipping fee. To learn more about your options and order your AmeriGlide Rave Curved HD Stair Lift stairlift, contact one of our stair lift experts today.

Additional Features:
  • Narrower profile
  • Extremely quiet, smooth ride
  • True-Curve rail with advanced bending technology creates smoother turns
  • Supportive, ergonomic seating
  • Simple-connect rails and lighter chassis for easy installation

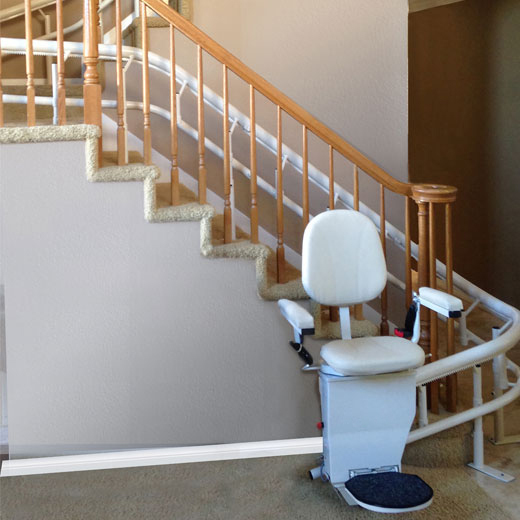

  • Showing White at Bottom of Stairs

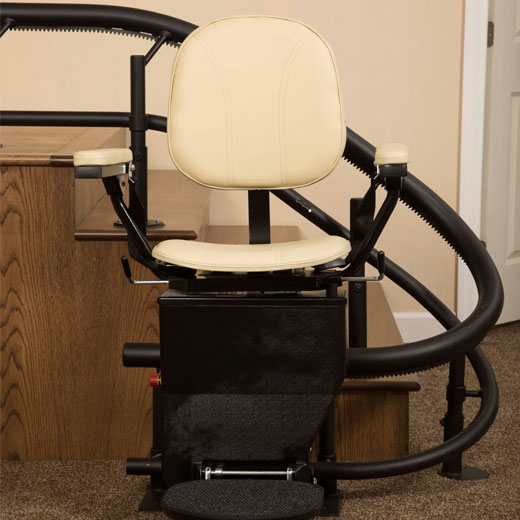

  • Showing Custom Color Track

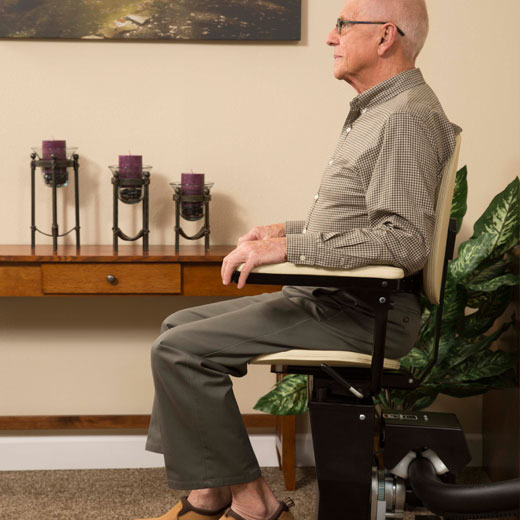

  • Showing Passenger Riding
spacer
spacer
spacer
Stair Lift Overview

Lift Options Available

  • Seat Color
    • Beige  $0.00No Image
    • Black  $0.00No Image
  • Rail Color
    • Beige  $0.00No Image
    • Black  $0.00No Image
  • Base Unit
    • 90 Degree first turn, up to 18' rail  $0.0090 Degree first turn, up to 18' rail
    • 90 degree first turn, up to 24' rail  $778.00No Image
    • 180 degree first turn, up to 18' rail  $500.00180 degree first turn, up to 18' rail
    • 180 degree first turn, up to 24' rail  $1,112.00No Image
    • Custom applications, up to 24' rail  $4,667.00No Image
    • Sweep, up to 24' rail  $6,167.00Sweep, up to 24' rail
    • Spiral, up to 24' rail  $15,667.00Spiral, up to 24' rail
    • Straight with Overrun, up to 16' rail  $0.00Straight with Overrun, up to 16' rail
    • Straight with Intermediate landing, up to 16' rail  $0.00No Image
  • Options
    • Seat Belt  $0.00No Image
    • Top & Bottom Call-Send Stations  $0.00No Image
    • Additional Call/Send  $300.50No Image
    • 90 Degree Park  $2,492.00No Image
    • 90 Degree Turn  $2,333.00No Image
    • 180 Degree Park  $3,033.00No Image
    • 180 Degree Turn  $2,883.00No Image
    • Additional Track (per foot)  $174.75No Image
    • Extra Spiral (per foot)  $842.00No Image
    • Extra Sweep (per foot)  $500.50No Image
    • Additional Charge Station  $558.00No Image
    • Drop Nose  $342.00No Image
    • Key Switch  $300.50No Image
    • Outdoor Package  $3,995.00No Image
  • Orientation (looking UP the staircase)
    • The stair lift will be on the left  $0.00No Image
    • The stair lift will be on the right  $0.00No Image
  • Installation
    • Is There a Stair Lift Currently Installed Where this Curved Stair Lift Will Be Going?  $0.00No Image
    • Stair Lift Removal Service  $499.00No Image
    • CAD Service - A $2500 CAD Cost Will be Charged if the Stairlift Order is Cancelled  $0.00No Image
  • Installation Special Cases
    • Installation On Concrete, Steel, or Tile Stairs is available.  $460.00No Image
    • Most sprial staircases will not accept a curved lift if the staircase is made with a single center pole.  $0.00No Image
  • Shipping Note
    • Installation by Trained Installers is Included with the Shipping Cost  $0.00No Image


Why buy an AmeriGlide Stairlift? We can give you 10 reasons.

AmeriGlide is the quality manufacturer of stair lifts and other mobility products. There are many many reasons to buy an AmeriGlide stair lift. Check out what some of our customers have to say in the Testimonials section of our site. The following Ten Best Reasons to Buy an AmeriGlide Stair lift comes directly from the President of AmeriGlide.



  1. Quality: AmeriGlide refuses to have the quality of our stair lifts surpassed by any manufacturer. We back our quality up with a 10-Year Drive Train Warranty and a 5-Year Parts Warranty. Please see the warranty section of our site for details.
  2. Reliability: Each part of the AmeriGlide stairway lift has been designed to make sure you can depend on your lift when you need it most. Little things have been added such as a power indicator light on the track assuring you that unit is ready to use. The aircraft cable in the drive system is rated 4,200 lbs. breaking strength. A spare fuse is under the 115-volt plug so you can replace it yourself if necessary. The motor and gear have been tested in excess of 30,000 cycles equal to 16 years of use and neither showed excessive wear. Last but not least, AmeriGlide stair lifts do not have circuit boards which are prone to failure for a host of reasons from power surge, lightning, to poor construction.
  3. Minimal Maintenance: As strange as this may sound for a mechanical device, there is simply very little maintenance required for the AmeriGlide stairlift. Lubrication of the track is needed every 4-6 months. Nothing more! The gearbox on the AmeriGlide stairlift is completely sealed, preventing the possibility of oil leaking onto your carpet unlike most lifts that have gearboxes with vent plugs. Also, virtually all other lifts use rack and pinion gears to drive the lift. These must be lubricated with dust-collecting grease to prevent damage from occurring. AmeriGlide?s cable drive system does not require lubrication, allowing you to leave dust-collecting grease in the garage.
  4. Peace of Mind: The AmeriGlide stairway lift was designed to make sure nothing was missed. Footrest safety sensors stop the lift in either direction should it strike anything on the stairs. The seat is equipped with a seat belt and a safety switch that prevents the unit from running unless the seat is in its proper position. Limit switches shut the unit off in the same place at the top and bottom of the stairs automatically. This is our way of offering you and your family member's peace of mind regarding your safety.
  5. Comfort/Safety: The AmeriGlide stairlift has a wide, thick, padded seat that folds up when not in use. The large rocker switch on the arm of your choice and a 180-degree swivel seat make using the lift simple. The fold-up footrest adjusts give your feet support and the backrest makes sure you are as comfortable as when you are sitting in your favorite chair. Every facet of the lift was designed to enable you to relax and enjoy using your AmeriGlide Stairlift.
  6. Flexibility: The AmeriGlide stairway lift can be placed on either side of a staircase, and the unit control can be placed in either arm. By adding or cutting the track, you can modify the length of the unit should you ever need to relocate. Standard call controls are mounted on the floor at each end of the staircase and can be placed on the wall and operated by hand. Either location allows you to call the lift to you regardless of where the lift is on the track. This flexibility enhances the resale value of the lift, and yes, the warranty is transferable should you decide to resell your lift!
  7. Easy Installation: AmeriGlide stairlifts were designed and engineered from start to finish with homeowner installation as the end objective. The result is a stairlift that is unsurpassed in ease of installation. The heaviest part of the lift is 100 pounds allowing for a true one man installation. We have eliminated any stripping or connecting of individual wires and created a system that simplifies installation of the base unit onto the track.
  8. Technical Support/Service: Our technical department is open Monday through Friday, 8:00am to 5:30pm. We will not be surpassed by any manufacturer in service or support.
  9. Warranty: Our warranty is unsurpassed in the industry. We offer the only 5 year warranty on 100% of the component parts of our lift. No exceptions, no exclusions, no games!
  10. Value: The AmeriGlide stairlift is the best value in the industry today. Of course, we have the best price, but value is more than just price. We also provide all the elements that create value for our customers, including quality, service, support, reliability, and warranty. We want to thank you for considering AmeriGlide as your stair lift solution. You can pay more for a stair lift, but you can't buy more value than AmeriGlide Stairlifts. Let us help you regain your freedom with AmeriGlide Stairlifts.
