Stratos 750 AC Commercial

spacer
Call (888) 300-0982 for buying advice and our lowest prices!
spacer

Add to Cart


Price

$5,470.00

(Plus Shipping)

Product Name

Stratos 750 AC Commercial

Warranty

click here for warranty


Product Review
(0)
(92.5)

Weight Limit750 lb
Lift Speed (FPM)10
Arrives AssembledYes
Drive System1" Diameter ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Emergency Stop Platform ControlLighted Emergency Stop with Alarm
Alarm ButtonLighted Emergency Stop with Alarm
Keyed Platform ControlOptional
Call-Send ControlsOne Per Stop Included
Optional Call-Send ControlsKeyed and/or Wireless
Platform TypeSolid with Non-Skid Coating
Platform Size36" x 54" (34" Usable Width)
Optional Platform Sizes36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Upper Landing GateOptional
Upper Access RampNone Available
Lower Access Ramp36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
Grab RailIncluded
Guard Panel42"
Maximum Stops3
Other OptionsFire-Rated Doors, Automatic Door Openers
Authorized AmeriGlide Stair Lift Provider
The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:
  • Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
  • SteadyDrive: Ensures a smooth, quiet and stable lift.
  • ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
  • Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.

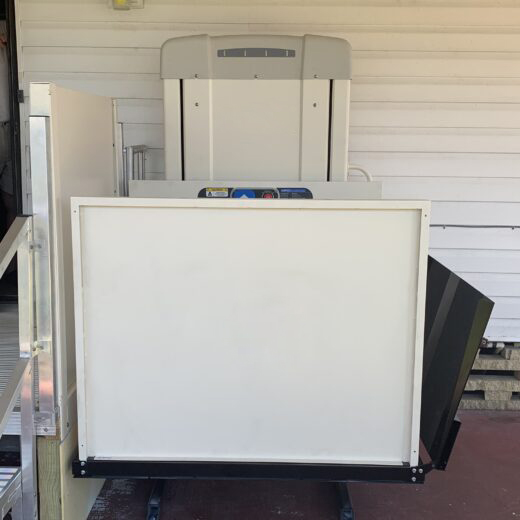

  • New product image

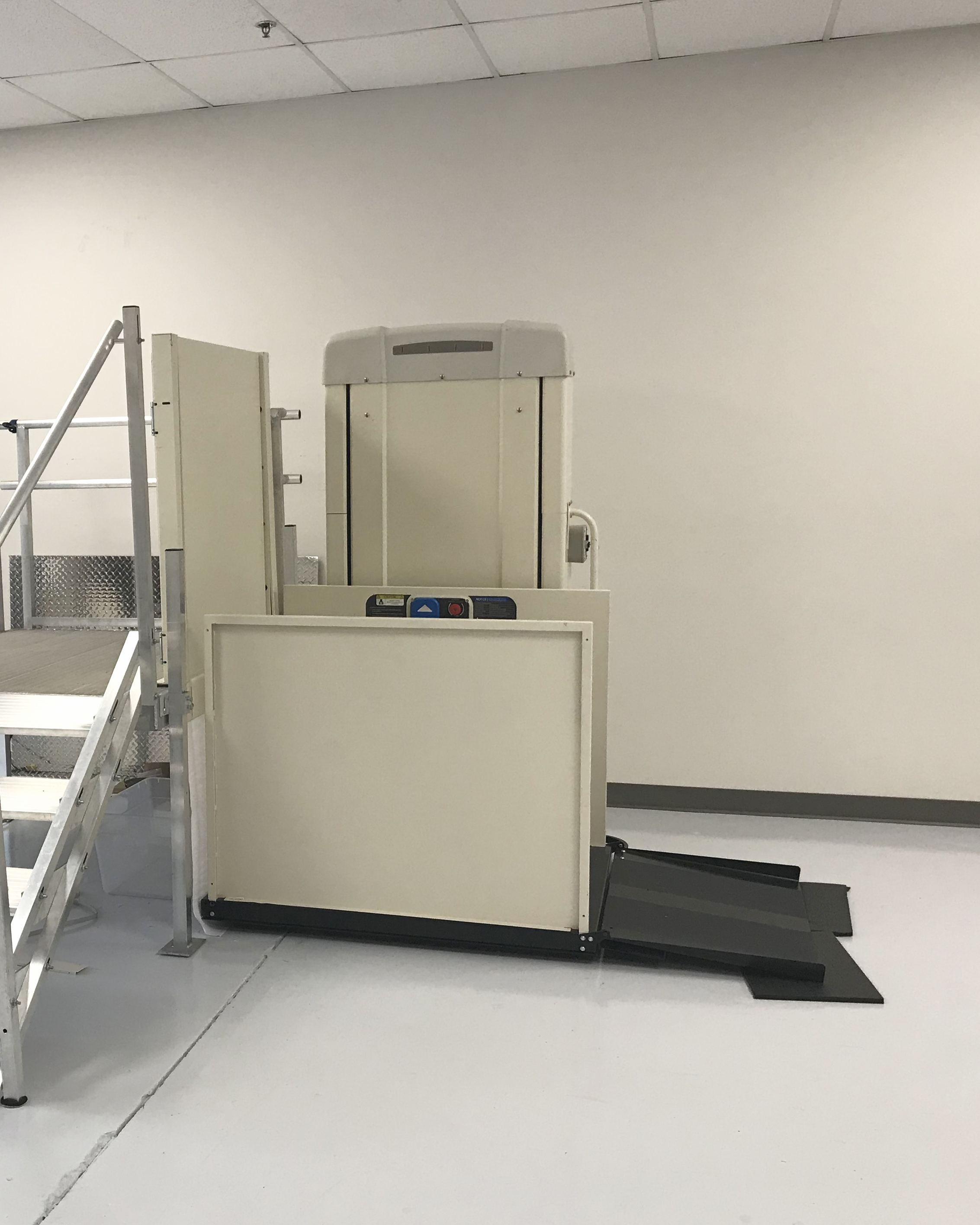

  • New product image
spacer
spacer
spacer

Lift Options Available

  • Lifting Height
    • 53" MAXIMUM LIFT HEIGHT  $0.00No Image
    • 77" MAXIMUM LIFT HEIGHT  $869.00No Image
    • 101" MAXIMUM LIFT HEIGHT  $2,782.00No Image
    • 125" MAXIMUM LIFT HEIGHT  $4,521.00No Image
    • 149" MAXIMUM LIFT HEIGHT  $6,087.00No Image
    • 171" MAXIMUM LIFT HEIGHT  $7,652.00No Image
  • Power Source
    • AC POWERED  $0.00No Image
    • READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah  $985.00No Image
    • READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah  $1,123.00No Image
  • Use Options
    • OUTDOOR USE  $160.00No Image
    • COLD WEATHER PACKAGE (FOR STANDARD UPS)  $185.00No Image
    • COLD WEATHER PACKAGE (FOR PLUS UPS)  $369.00No Image
  • Tower Orientation
    • TOWER ON THE LEFT  $0.00No Image
    • TOWER ON THE RIGHT  $0.00No Image
  • Number of Stops
    • 2 STOPS  $0.00No Image
    • 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL  $942.00No Image
  • Hoistway Installation
    • INSTALLED IN A HOISTWAY  $0.00No Image
    • NO HOISTWAY  $0.00No Image
  • Platform Type (Width, Depth, Height)
    • Select From Options Below  $0.00No Image
    • Straight Through (180 degrees)  $0.00No Image
    • 36 X 54 X 42 STRAIGHT THROUGH PLATFORM  $0.00No Image
    • 36 X 60 X 42 STRAIGHT THROUGH PLATFORM  $317.00No Image
    • 42 X 54 X 42 STRAIGHT THROUGH PLATFORM  $392.00No Image
    • 42 X 60 X 42 STRAIGHT THROUGH PLATFORM  $475.00No Image
    • 90 Degree  $0.00No Image
    • 36 X 54 X 42 90 Degree LEFT PLATFORM  $317.00No Image
    • 36 X 54 X 42 90 Degree RIGHT PLATFORM  $317.00No Image
    • 36 X 60 X 42 90 Degree LEFT PLATFORM  $625.00No Image
    • 36 X 60 X 42 90 Degree RIGHT PLATFORM  $625.00No Image
    • 42 X 54 X 42 90 Degree LEFT PLATFORM  $708.00No Image
    • 42 X 54 X 42 90 Degree RIGHT PLATFORM  $708.00No Image
    • 42 X 60 X 42 90 Degree LEFT PLATFORM  $792.00No Image
    • 42 X 60 X 42 90 Degree RIGHT PLATFORM  $792.00No Image
    • Same Side Entry/Exit (0 degrees)  $0.00No Image
    • 36 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM  $317.00No Image
    • 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM  $625.00No Image
    • 42 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM  $708.00No Image
    • 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM  $792.00No Image
  • Platform Gate
    • LIFTS 8' AND OVER THAT ARE NOT IN A HOISTWAY REQUIRE A PLATFORM GATE OR AN INTERLOCK FOR A CUSTOMER PROVIDED GATE.  $0.00No Image
    • NO PLATFORM GATE  $0.00No Image
    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT  $1,033.0036 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT
    • 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT  $1,033.00No Image
    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT  $1,258.00No Image
    • 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT  $1,258.00No Image
  • Platform Controls
    • Paddle Controls with Emergency Stop Button  $0.00No Image
    • Emergency Stop Alarm with Lighted Button  $158.00No Image
  • Platform Options
    • Keylocks for Controls  $83.00No Image
    • CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH)  $133.00No Image
  • Ramp Type
    • 36" AUTO-FOLD RAMP  $408.00No Image
    • 42" AUTO-FOLD RAMP  $500.00No Image
    • 36" FIXED RAMP  $225.00No Image
    • 42" FIXED RAMP  $69.00No Image
    • Pit, no Ramp, add Pit Switch  $200.00No Image
  • Landing Gate
    • 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT  $1,108.0036 X 42 LANDING GATE W/EMI INTERLOCK, LEFT
    • 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT  $1,108.00No Image
    • 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT  $1,308.00No Image
    • 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT  $1,308.00No Image
  • Landing Gate Call/Send
    • CALL-SEND ROCKER SWITCH FOR LANDING GATE  $108.00No Image
    • CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE  $192.00No Image
  • Fire Rated Doors
    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH  $2,683.0036" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH
    • 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH  $2,683.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH  $3,308.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH  $3,308.00No Image
    • 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH  $3,158.00No Image
    • 36" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH  $3,158.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-LH  $3,783.00No Image
    • 42" FIRE-RATED HOISTWAY DOOR W/ELECTRIC STRIKE-RH  $3,783.00No Image
  • Automatic Opener
    • AUTOMATIC OPENER FOR LANDING GATE  $2,525.00No Image
    • AUTOMATIC DOOR OPENER FOR FULL DOOR  $2,525.00No Image
  • Interlocks
    • INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE.  $0.00No Image
    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH  $467.00No Image
    • EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH  $467.00No Image
    • FLUSH MOUNT ELECTRIC STRIKE FOR METAL DOORS BY OTHERS  $917.00No Image
    • FLUSH MOUNT ELECTRIC STRIKE FOR WOOD DOORS BY OTHERS  $917.00No Image
    • OTHER INTERLOCK OPTIONS  $0.00No Image
    • WIRING FOR INTERLOCKS PROVIDED BY OTHERS  $233.00No Image
    • KEYED DEAD LATCH FOR USE W/FLUSH MOUNT ELECTRIC STRIKE  $200.00No Image
  • Call Send Options
    • CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)  $200.00No Image
    • KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH)  $283.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 1 LANDING  $275.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS  $625.00No Image
    • WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS  $853.52No Image
  • Fascia Panels
    • NO FASCIA PANELS  $0.00No Image
    • FASCIA PANEL; 41" WIDE x 24" TALL  $75.00No Image
    • FASCIA PANEL; 41" WIDE x 53" TALL  $133.00No Image
    • FASCIA PANEL; 47" WIDE x 24" TALL  $108.00No Image
    • FASCIA PANEL; 24" WIDE x 53" TALL  $158.00No Image
    • FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT  $167.00No Image
    • FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT  $200.00No Image
  • Additional Options
    • TOWER BRACE WITH BRACKET  $200.00No Image
    • PHONE JACK  $200.00No Image
    • EMERGENCY TOWER LIGHT, BACK-UP  $185.00No Image
    • EXTRA KEYS (EACH)  $25.00No Image
    • CUSTOM COLOR (ALLOW 6-8 WEEKS)  $0.00No Image
    • FLOAT LEVEL SWITCH  $200.00No Image
  • State Required Inspections / Permits
    • PERMIT (REQUIRED IN KENTUCKY)  $87.50No Image
    • GEORGIA PERMIT & INSPECTION FEES  $250.00No Image
  • Installation (Within 200 miles of Raleigh)
    • SELF-INSTALL  $0.00No Image
    • SITE EVALUATION <STRONG>(REQUIRED FOR SITES OUTSIDE A 50 MILE RADIUS OF RALEIGH)</STRONG>  $150.00No Image
  • Delivery Options
    • FLAT BED AND FORKLIFT DELIVERY  $449.00No Image
  • Delivery State
