Pinnacle Stair Lift [DC]

spacer
Call 1 (888) 301-2610 for buying advice and our lowest prices!
spacer

Add to Cart

This product can not be purchased online. Please call
1 (888) 301-2610
if you wish to purchase.

Price

$3,999.00

(Free Shipping)

Product Name

Pinnacle Stair Lift [DC]

Warranty

click here for warranty


Product Review
(0)
(100)

Weight Limit350 lb
Drive TrainPolymer Worm & Worm-Rack
Battery PoweredYes
Track TypeAluminum
Seat Width18.75"
Seat Depth16"
Swivel SeatYes
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Unit Footprint, In Use23.75"
Unit Footprint, Parked11"
Track Footprint6.5"

The battery-operated Pinnacle Stair Lift is the narrowest stair lift in the world, as it measures only 10" wide when the footrest and seat are folded and only takes up 11" of space on the stairs when installed. The Pinnacle is also lightweight too, at only 180 pounds installed with 16 feet of track. Just how is this possible? It's possible due to the Pinnacle's patented helical drive system that is extraordinarily compact and energy efficient. Perhaps the best part about this drive system is that it doesn't require any lubrication or grease. Just vacuum it if it gets dirty.

Additional features of the Pinnacle Stair Lift include wireless call and send controls, and easy to operate control switch built into the armrests, a swivel seat that makes entry and exit safe & easy, and a lifetime warranty on the gear rack. Professional installation service is required and included with all Pinnacle Stair Lifts. We also offer free shipping and the most qualified staff in the business.

Just give us a call at 1-888-301-2610 to learn more about the Pinnacle or to place your order. Not available for online sale. Professional installation required.

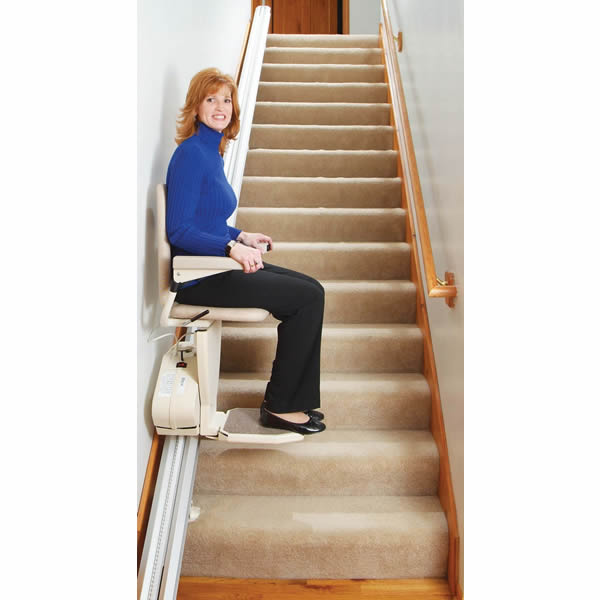

  • In Use

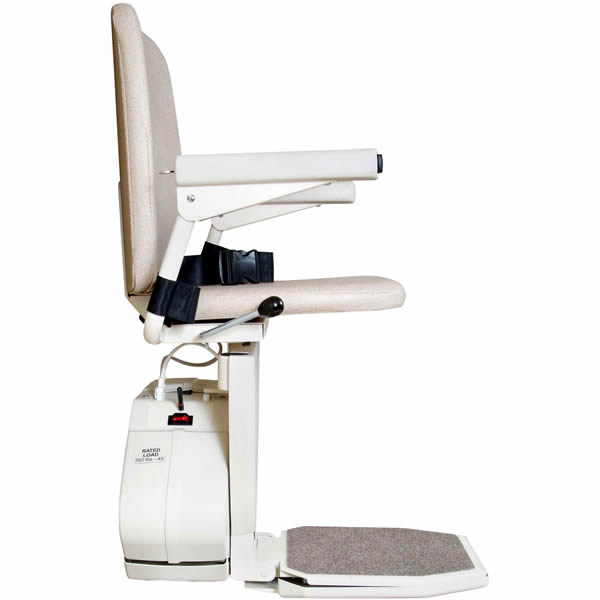

  • Side View

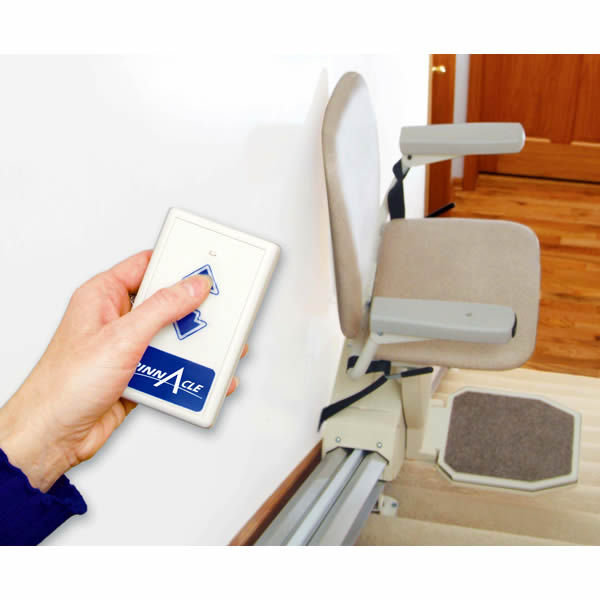

  • Remote Control
spacer
spacer

Lift Options Available

  • Seat Upholstery Color
    • Light Almond  $0.00Light Almond Seat Color For Pinnacle
    • Alpine  $143.49Alpine Seat Color For Pinnacle
    • Bluebell  $143.49Bluebell Seat Color For Pinnacle
    • Ruby  $143.49Ruby Seat Color For Pinnacle
  • Weight Capacity
    • 350 lb.  $0.00No Image
  • Track Length
    • Up to 16' of track is included free with your lift.  $0.00No Image
    • Additional Track Per Foot - Up To 70' Total  $50.00No Image
  • Options
    • Wireless Call/Send Controls (Set of 2)  $0.00No Image
    • Key Lock On Lift  $136.49No Image
    • Bronze Annodized Track  $143.49No Image
    • Folding Rail (Must Be Purchased With Lift)  $1,070.49Pinnacle Folding Rail (Sold With Lift)
  • Orientation (looking UP the staircase)
    • The stair lift will be on the left  $0.00No Image
    • The stair lift will be on the right  $0.00No Image
  • Installation
    • Installation & Measurement Service Included  $0.00Installation and Measurement Service
  • Installation Special Cases
    • Installation On Concrete, Steel, or Tile Stairs  $300.00No Image
    • Installation In Remote or Limited Access Location  $285.00No Image
  • Permit and Inspection
    • Permit and Inspection (Required in Alabama)  $285.00No Image
    • Permit (Required in Kentucky)  $85.00No Image
spacer
Video
Stair Lift Overview


Why buy an AmeriGlide Stairlift? We can give you 10 reasons.

AmeriGlide is the quality manufacturer of stair lifts and other mobility products. There are many many reasons to buy an AmeriGlide stair lift. Check out what some of our customers have to say in the Testimonials section of our site. The following Ten Best Reasons to Buy an AmeriGlide Stair lift comes directly from the President of AmeriGlide.



  1. Quality: AmeriGlide refuses to have the quality of our stair lifts surpassed by any manufacturer. We back our quality up with a 10-Year Drive Train Warranty and a 5-Year Parts Warranty. Please see the warranty section of our site for details.
  2. Reliability: Each part of the AmeriGlide stairway lift has been designed to make sure you can depend on your lift when you need it most. Little things have been added such as a power indicator light on the track assuring you that unit is ready to use. The aircraft cable in the drive system is rated 4,200 lbs. breaking strength. A spare fuse is under the 115-volt plug so you can replace it yourself if necessary. The motor and gear have been tested in excess of 30,000 cycles equal to 16 years of use and neither showed excessive wear. Last but not least, AmeriGlide stair lifts do not have circuit boards which are prone to failure for a host of reasons from power surge, lightning, to poor construction.
  3. Minimal Maintenance: As strange as this may sound for a mechanical device, there is simply very little maintenance required for the AmeriGlide stairlift. Lubrication of the track is needed every 4-6 months. Nothing more! The gearbox on the AmeriGlide stairlift is completely sealed, preventing the possibility of oil leaking onto your carpet unlike most lifts that have gearboxes with vent plugs. Also, virtually all other lifts use rack and pinion gears to drive the lift. These must be lubricated with dust-collecting grease to prevent damage from occurring. AmeriGlide?s cable drive system does not require lubrication, allowing you to leave dust-collecting grease in the garage.
  4. Peace of Mind: The AmeriGlide stairway lift was designed to make sure nothing was missed. Footrest safety sensors stop the lift in either direction should it strike anything on the stairs. The seat is equipped with a seat belt and a safety switch that prevents the unit from running unless the seat is in its proper position. Limit switches shut the unit off in the same place at the top and bottom of the stairs automatically. This is our way of offering you and your family member's peace of mind regarding your safety.
  5. Comfort/Safety: The AmeriGlide stairlift has a wide, thick, padded seat that folds up when not in use. The large rocker switch on the arm of your choice and a 180-degree swivel seat make using the lift simple. The fold-up footrest adjusts give your feet support and the backrest makes sure you are as comfortable as when you are sitting in your favorite chair. Every facet of the lift was designed to enable you to relax and enjoy using your AmeriGlide Stairlift.
  6. Flexibility: The AmeriGlide stairway lift can be placed on either side of a staircase, and the unit control can be placed in either arm. By adding or cutting the track, you can modify the length of the unit should you ever need to relocate. Standard call controls are mounted on the floor at each end of the staircase and can be placed on the wall and operated by hand. Either location allows you to call the lift to you regardless of where the lift is on the track. This flexibility enhances the resale value of the lift, and yes, the warranty is transferable should you decide to resell your lift!
  7. Easy Installation: AmeriGlide stairlifts were designed and engineered from start to finish with homeowner installation as the end objective. The result is a stairlift that is unsurpassed in ease of installation. The heaviest part of the lift is 100 pounds allowing for a true one man installation. We have eliminated any stripping or connecting of individual wires and created a system that simplifies installation of the base unit onto the track.
  8. Technical Support/Service: Our technical department is open Monday through Friday, 8:00am to 5:30pm. We will not be surpassed by any manufacturer in service or support.
  9. Warranty: Our warranty is unsurpassed in the industry. We offer the only 5 year warranty on 100% of the component parts of our lift. No exceptions, no exclusions, no games!
  10. Value: The AmeriGlide stairlift is the best value in the industry today. Of course, we have the best price, but value is more than just price. We also provide all the elements that create value for our customers, including quality, service, support, reliability, and warranty. We want to thank you for considering AmeriGlide as your stair lift solution. You can pay more for a stair lift, but you can't buy more value than AmeriGlide Stairlifts. Let us help you regain your freedom with AmeriGlide Stairlifts.
