Call (888) 301-2603 for buying advice and our lowest prices!
Price
$3,439.00
(Plus Shipping)
Product Name

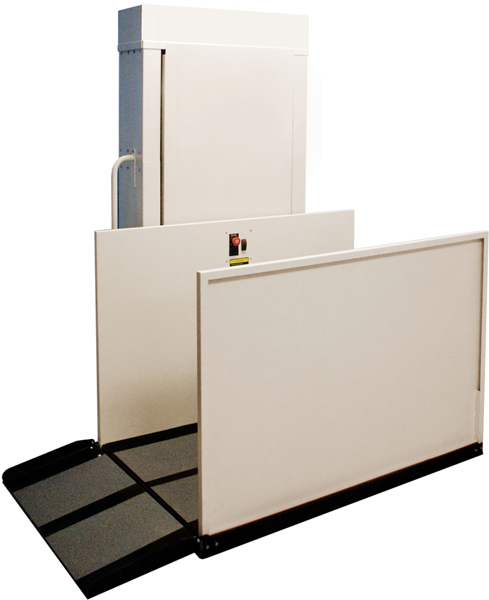

AmeriGlide Hercules II Vertical Lift [Reconditioned Residential]
| Weight Limit | 600 lb |
| Lift Speed (FPM) | 10 |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Acme Screw Drive |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional Non-Keyed & Keyed Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 48" Platform (34" Usable Width) |
| Optional Platform Sizes | 36" x 54", 36" x 60", 42" x 54" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Automatic Folding, Optional Fixed |
| Grab Rail | Included |
| Guard Panel | 36", Optional 42" |
| Maximum Stops | 3 |
![AmeriGlide Hercules II Vertical Lift [Residential]](/cache/1307732417000/resources/product/18/picture-thumb.jpg)
![AmeriGlide Atlas Vertical Lift [Residential]](/cache/1307732420000/resources/product/4/picture-thumb.jpg)
![AmeriGlide Atlas Vertical Lift [Portable]](/cache/1248375780000/resources/product/9/picture-thumb.jpg)
![AmeriGlide Hercules II Vertical Lift [Reconditioned Residential]](/cache/1298049926000/resources/product/107/picture.jpg)
The Reconditioned Hercules II Residential Vertical Lift comes to your home in like-new condition with a solid platform and a solid guard panel. Some assembly is required, but installation is simple in most cases: just bolt it into a concrete pad, plug the cord into a standard 115 VAC grounded outlet, and then set the limit switches. Some extra safety requirements may be necessary depending on your situation, such as fascia paneling for lifts installed near a deck, but all-in-all the Reconditioned Hercules II Residential is the quickest, easiest, and most economical solution for basic residential needs. 30 day parts warranty.
Complies with ASME A18.1, Section 5 and CSA B44.1 / ASME 17.5 standards.
Complies with ASME A18.1, Section 5 and CSA B44.1 / ASME 17.5 standards.
Additional Information
Lift Options Available
- Lifting Height
- 53" Max Lift Height, Acme Screw Drive $0.00
- 77" Max Lift Height, Acme Screw Drive $660.00
- 101" Max Lift Height, Acme Screw Drive $1,680.00
- 125" Max Lift Height, Acme Screw Drive $3,150.00
- 149" Max Lift Height, Ball Screw Drive $4,780.00
- 171" Max Lift Height, Ball Screw Drive $6,040.00
- 53" Max Lift Height, Acme Screw Drive $0.00
- Crating & Assembly
- No Crating - Some assembly is required. $0.00
- 36" x 48" or 36" x 54" Platform $0.00
- 53" Unit Shipped Crated & Fully Assembled $461.49
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate $0.00
- 53" Unit Shipped Crated & Fully Assembled $690.77
- No Crating - Some assembly is required. $0.00
- Tower Orientation
- Tower On The Left $0.00
- Tower On The Right $0.00
- Tower On The Left $0.00
- Power Source
- AC Powered $0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included. $1,000.49
- AC Powered $0.00
- Electronics
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls. $0.00
- Standard Electronics Control Board $0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices. $0.00
- 42" high side walls require a Commercial Electronics Control Board $0.00
- Commercial Electronics Control Board $308.49
- Ball Screw Drive Models Include A Commercial Electronics Control Board $0.00
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls. $0.00
- Portable Package
- None $0.00
- Portable Package
53" or 77" Max Lift Height
36" x 54" Straight Thru Platform
Platform Gate On Exit Side Included $1,614.49
- Portable Package also includes an Automatic Ramp and Safety Pan $0.00
- None $0.00
- Platform Type
- 36" x 48" Straight Thru (34" Usable Width) $0.00
- 36" x 54" Straight Thru (34" Usable Width) $153.49
- 36" x 60" Straight Thru (34" Usable Width) $246.49
- 42" x 54" Straight Thru (40" Usable Width) $492.49
- 36" x 54" 90 Degree (34" Usable Width) $368.49
- 36" x 60" 90 Degree (34" Usable Width) $492.49
- 42" x 54" 90 Degree (40" Usable Width) $737.49
- 36" x 48" Straight Thru (34" Usable Width) $0.00
- Platform Access
- Straight Thru or 90 Degree $0.00
- Same Side Entry & Exit - Lift height must be 101" or greater. $368.49
- Straight Thru or 90 Degree $0.00
- Platform Gate
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00
- Platform gates require 42" high side walls (found below). $0.00
- No Platform Gate $0.00
- Left Swing 36" Wide Straight Thru Platform Gate with Interlock $614.49
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock $614.49
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock $860.49
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock $860.49
- Left Swing 90 Degree Platform Gate with Interlock $983.49
- Right Swing 90 Degree Platform Gate with Interlock $983.49
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00
- Platform Controls
- Paddle Controls with Emergency Stop Button $0.00
- Paddle Controls with Emergency Stop Button $0.00
- Platform Control Options
- Emergency Alarm & Lighted Button $208.49
- Keylocks for Controls $34.49
- Emergency Alarm & Lighted Button $208.49
- Platform Options
- Solid Platform with Safety Pan $0.00
- Inside Grab Bar $0.00
- 42" high side walls are required for lifts 8' and taller. $0.00
- 42" high side walls are required for ANY lift with a platform gate. $0.00
- 36" High Side Walls $0.00
- 42" High Side Walls $152.49
- 42" high side walls require a Commercial Electronics Control Board $0.00
- Solid Platform with Safety Pan $0.00
- Ramp Type & Pit Switch
- Automatic Ramp $0.00
- Fixed Ramp $0.00
- No Ramp with Pit Switch Option $123.49
- Automatic Ramp $0.00
- Landing Controls
- Call/Send Control Station (each) $119.00
- Wireless Call/Send Control Stations (pair) $479.00
- Keylocks for Controls (each) $34.00
- Call/Send Control Station (each) $119.00
- Landing Gate
- Landing gates below include an interlock and a call/send control built into the gate. $0.00
- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Keylocks for Controls (each) $34.00
- Landing gates below include an interlock only. $0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Keylocks for Controls (each) $34.00
- Landing gates below include an interlock and a call/send control built into the gate. $0.00
- Fire Rated Doors
- No Door $0.00
- Fire-Rated Hoistway Door with EMI - Left (each) $2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each) $2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each) $2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each) $2,219.00
- No Door $0.00
- Interlocks
- Surface mount EMI interlocks below are for a customer provided door or gate. $0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate. $0.00
- Top Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Top Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Other Interlock Options $0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each) $139.00
- Wiring For Interlock (per landing) $159.00
- Surface mount EMI interlocks below are for a customer provided door or gate. $0.00
- Accessories
- Anchor Bolt Kit $0.00
- Tower Braces $154.49
- 3rd Stop Wiring Charge $492.49
- Phone Jack $138.49
- Emergency Light $138.49
- Fascia Panel (per foot) $59.00
- Automatic Door Opener - Requires Upgraded Electronics $2,349.00
- Anchor Bolt Kit $0.00
- Additional Delivery Services
- Free Liftgate Service on 53" Units As Requested $0.00
- Free Liftgate Service on 53" Units As Requested $0.00
