Product Name
AmeriGlide Express Dumbwaiter
Price
$3,495.00 (Plus Shipping)
![AmeriGlide Stair Lift [DC]](/cache/1248375780000/resources/product/6/picture-thumb.jpg)
AmeriGlide Stair Lift [DC]
$1,799.00![AmeriGlide Hercules Vertical Lift [Residential]](/cache/1260393369000/resources/product/18/picture-thumb.jpg)
AmeriGlide Hercules Vertical Lift [Residential]
$3,374.99

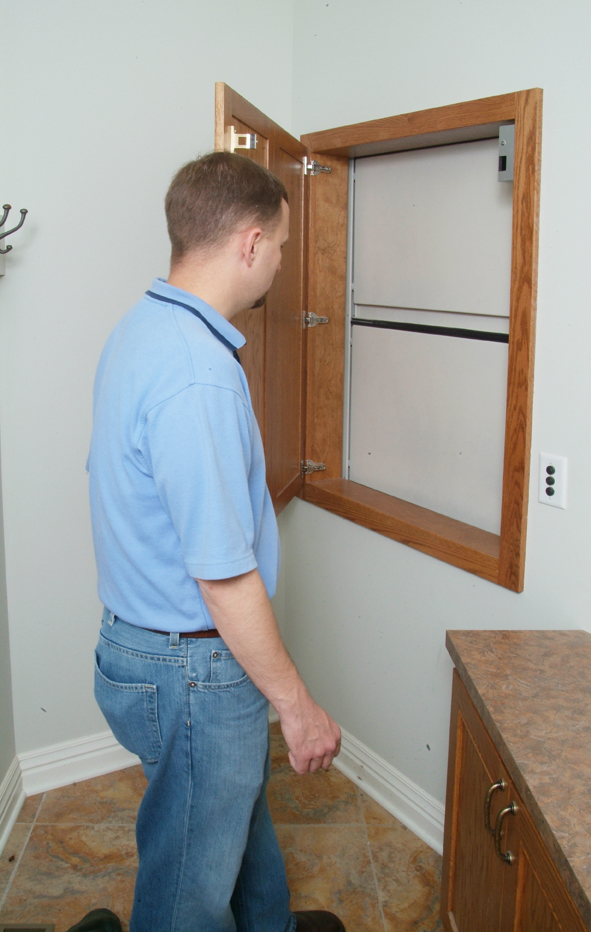

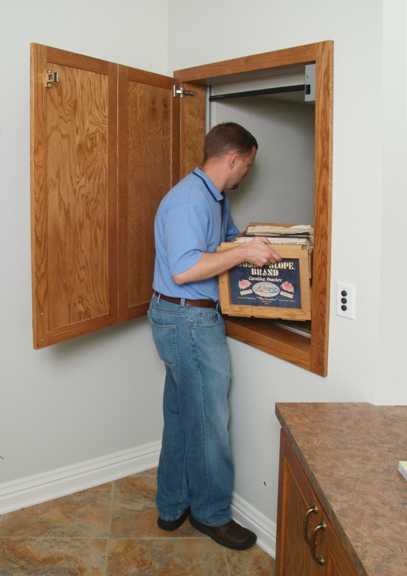

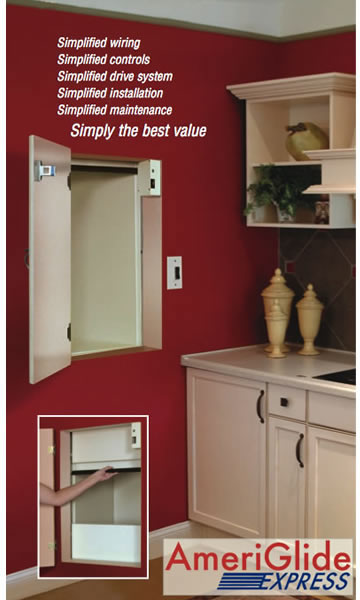

The AmeriGlide Express Dumbwaiter puts a dumbwaiter into homes for less and that's the bottom line! Forget complex pulley systems, traveling control cables, and days spent just on prep because the AmeriGlide Express comes out of the box with the entire drive system pre-installed on the underside of the car and the chassis & trolley system pre-installed on a section of track. This can mean up to entire day saved on installation time because all you have to do is connect sections of track, secure the drive cable, and do the wiring for the controls and interlocks.
Take a quick look at some of the advantages and features of choosing an AmeriGlide Express Dumbwaiter for your next project:
- No pulleys or complex rail systems
- Plug-and-play wiring
- Reliable drive system
- 2 year parts / 5 year drive train warranties
- Low voltage, quality interlocks
- Car and drive system come pre-installed
- Temporary bypass control to facilitate installation and maintenance
Lift Options Available
- Car Configuration
- Single Opening - Front $0.00
- Single Opening - Left $0.00
- Single Opening - Right $0.00
- Straight Through $285.72
- 90° Opening - Left and Front $428.58
- 90° Opening - Right and Front $428.58
- Single Opening - Front $0.00
- Stops
- 2 Stops $0.00
- 3 Stops $428.58
- 4 Stops $857.15
- 2 Stops $0.00
- Options
- Intermediate Car Shelf $142.86
- Floor Mount Drive Unit (includes Remote Mount Control Pkg) $500.00
- Remote Mount Control Package $357.15
- Automatic Homing Device $250.00
- Intermediate Car Shelf $142.86

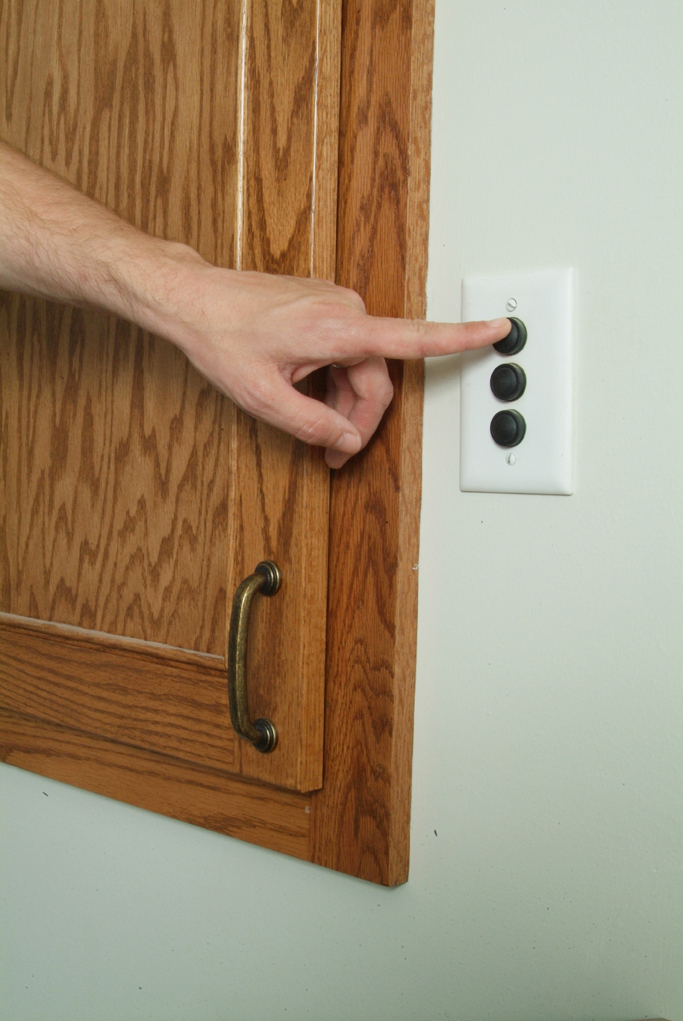

- Call-Send Control Options
- Keylocks (per control) $50.00
- "Car Here" Indicators (per control) $71.43
- Keylocks (per control) $50.00
- Car Size
- 20" wide x 20" deep x 30" high (100 lb. capacity) $0.00
- 24" wide x 24" deep x 30" high (150 lb. capacity) $285.72
- 30" wide x 30" deep x 36" high (200 lb. capacity) $500.00
- Custom $928.58
- 20" wide x 20" deep x 30" high (100 lb. capacity) $0.00
- Custom Car Measurement
- Width (min. 16" - max. 30") $0.00
- Depth (min. 16" - max. 30") $0.00
- Height (30" or 36") $0.00
- Width (min. 16" - max. 30") $0.00
- Weight Capacity
- 100 lb. Capacity $0.00
- 150 lb. Capacity $142.86
- 200 lb. Capacity $214.29
- 100 lb. Capacity $0.00
- Panels
- Ivory Powder Coated $0.00
- Stainless Steel $1,214.29
- Ivory Powder Coated $0.00
- Interlocks
- GAL's (2 units) $0.00
- Additional Landing Openings - Includes GAL, Call-Send, & Wiring (each) $178.58
- EMI's - 24V AC - Required for 90° Cars (each) $285.72
- No Interlocks - Wired for EMI $0.00
- GAL's (2 units) $0.00
- Unfinished Maple Hoistway Doors
- Landing Doors (each) $321.43
- Machine Access Doors (each) $285.72
- Landing Doors (each) $321.43
- Travel Measurements
- 1st Floor Sill Height $0.00
- 1st Floor to 2nd Floor (inches) $0.00
- 2nd Floor Sill Height $0.00
- 2nd Floor to 3rd Floor (inches) $0.00
- 3rd Floor Sill Height $0.00
- 3rd Floor to 4th Floor (inches) $0.00
- 4th Floor Sill Height $0.00
- 1st Floor Sill Height $0.00
- Total Travel
- Up to 12' $0.00
- 12' to 20' $214.29
- 20' to 28' $428.58
- Up to 12' $0.00
- Hoistway Door Swing 1st Floor
- 1st Floor - Right Hand Swing $0.00
- 1st Floor - Left Hand Swing $0.00
- 1st Floor - Right Hand Swing $0.00
- Hoistway Door Swing 2nd Floor
- 2nd Floor - Right Hand Swing $0.00
- 2nd Floor - Left Hand Swing $0.00
- 2nd Floor - Right Hand Swing $0.00
- Hoistway Door Swing 3rd Floor
- 3rd Floor - Right Hand Swing $0.00
- 3rd Floor - Left Hand Swing $0.00
- Door Swing - N/A $0.00
- 3rd Floor - Right Hand Swing $0.00
- Hoistway Door Swing 4th Floor
- 4th Floor - Right Hand Swing $0.00
- 4th Floor - Left Hand Swing $0.00
- Door Swing - N/A $0.00
- 4th Floor - Right Hand Swing $0.00
- 1st Floor Hoistway Door Location
- Left $0.00
- Front $0.00
- Right $0.00
- Left $0.00
- 2nd Floor Hoistway Door Location
- Left $0.00
- Front $0.00
- Right $0.00
- Left $0.00
- 3rd Floor Hoistway Door Location
- Left $0.00
- Front $0.00
- Right $0.00
- Left $0.00
- 4th Floor Hoistway Door Location
- Left $0.00
- Front $0.00
- Right $0.00
- Left $0.00
