Call (888) 300-0982 for buying advice and our lowest prices!
Price
$4,459.00
(Plus Shipping)
Product Name
AmeriGlide Hercules II Vertical Lift [Commercial]
| Weight Limit | 600 lb |
| Lift Speed (FPM) | 10 |
| Portable | No |
| Arrives Assembled | No |
| Drive System | 53" - 125" Acme Screw Drive, 149" - 171" Ball Screw Drive |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Optional Audible Alarm |
| Keyed Platform Control | Optional |
| Call-Send Controls | Optional Non-Keyed & Keyed Call-Send |
| Platform Type | Solid with Non-Skid Coating |
| Platform Size | 36" x 54" Platform (34" Usable Width) |
| Optional Platform Sizes | 36" x 60" (34" Usable Width), 42" x 54" (40" Usable Width) |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Same Side Entry-Exit, Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Fixed, Optional Automatic |
| Grab Rail | Included |
| Guard Panel | 42" |
| Maximum Stops | 3 |
![AmeriGlide Atlas Vertical Lift [Commercial]](/cache/1248375780000/resources/product/11/picture-thumb.jpg)

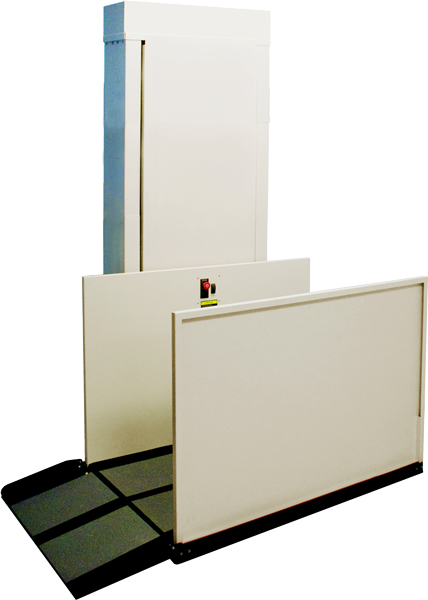

![AmeriGlide Hercules II Vertical Lift [Commercial]](/cache/1307732416000/resources/product/17/picture.jpg)

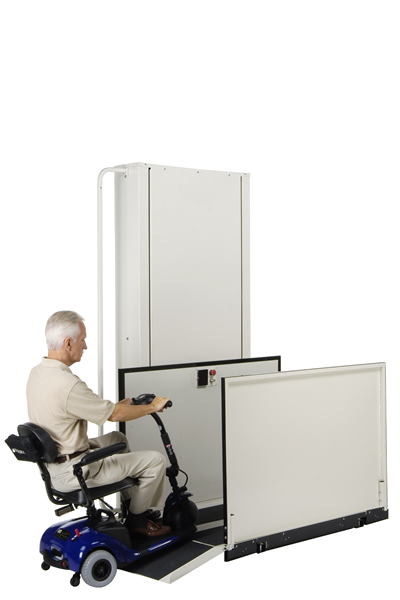

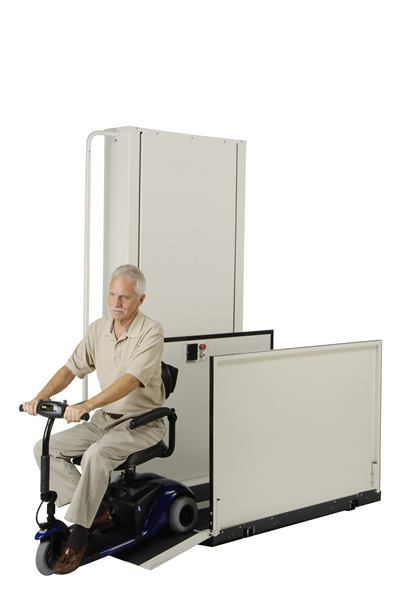

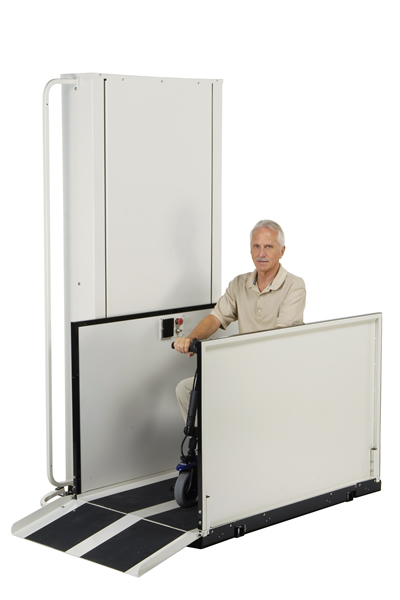

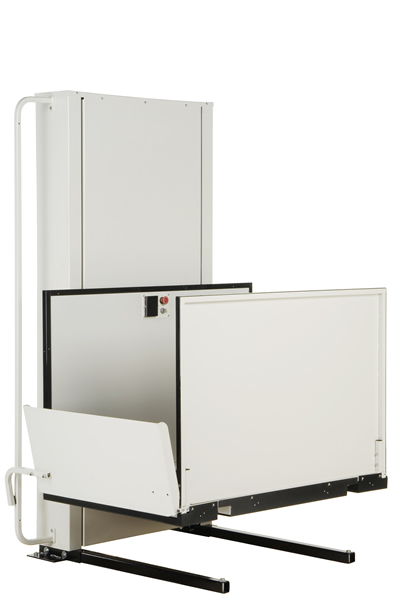

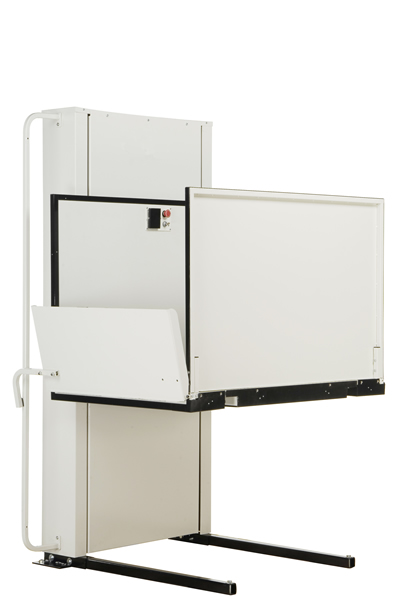

The Hercules II Commercial is a commercial vertical lift capable of lifting 600 pounds and offers a tremendous number of configurations. A solid platform, a solid guard panel, and a safety plate are included standard. Options for the Hercules II Commercial include larger platforms, various platform configurations, platform & landing gates, and a DC-powered drive. The Hercules II Commercial is the best value in the commercial vertical lift world.
Complies with ASME A18.1, Section 2 and CSA B44.1 / ASME 17.5 standards when correctly configured.
Complies with ASME A18.1, Section 2 and CSA B44.1 / ASME 17.5 standards when correctly configured.
Additional Information
Lift Options Available
- Lifting Height
- 53" Max Lift Height, Acme Screw Drive $0.00
- 77" Max Lift Height, Acme Screw Drive $730.00
- 101" Max Lift Height, Acme Screw Drive $1,840.00
- 125" Max Lift Height, Acme Screw Drive $3,450.00
- 149" Max Lift Height, Ball Screw Drive $4,940.00
- 171" Max Lift Height, Ball Screw Drive $6,330.00
- 53" Max Lift Height, Acme Screw Drive $0.00
- Crating & Assembly
- No Crating - Some assembly is required. $0.00
- 36" x 54" Platform $0.00
- 53" Unit Shipped Crated & Fully Assembled $461.49
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate $0.00
- 53" Unit Shipped Crated & Fully Assembled $690.77
- No Crating - Some assembly is required. $0.00
- Tower Orientation
- Tower On The Left $0.00
- Tower On The Right $0.00
- Tower On The Left $0.00
- Power Source
- AC Powered $0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included. $1,000.49
- AC Powered $0.00
- Electronics
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices. $0.00
- Commercial Electronics Control Board $0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices. $0.00
- Platform Type
- 36" x 54" Straight Thru (34" Usable Width) $0.00
- 36" x 60" Straight Thru (34" Usable Width) $246.49
- 42" x 54" Straight Thru (40" Usable Width) $492.49
- 36" x 54" 90 Degree (34" Usable Width) $368.49
- 36" x 60" 90 Degree (34" Usable Width) $492.49
- 42" x 54" 90 Degree (40" Usable Width) $737.49
- 36" x 54" Straight Thru (34" Usable Width) $0.00
- Platform Access
- Straight Thru or 90 Degree $0.00
- Same Side Entry & Exit - Lift height must be 101" or greater. $368.49
- Straight Thru or 90 Degree $0.00
- Platform Gate
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00
- No Platform Gate $0.00
- Left Swing 36" Wide Straight Thru Platform Gate with Interlock $614.49
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock $614.49
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock $860.49
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock $860.49
- Left Swing 90 Degree Platform Gate with Interlock $983.49
- Right Swing 90 Degree Platform Gate with Interlock $983.49
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00
- Platform Controls

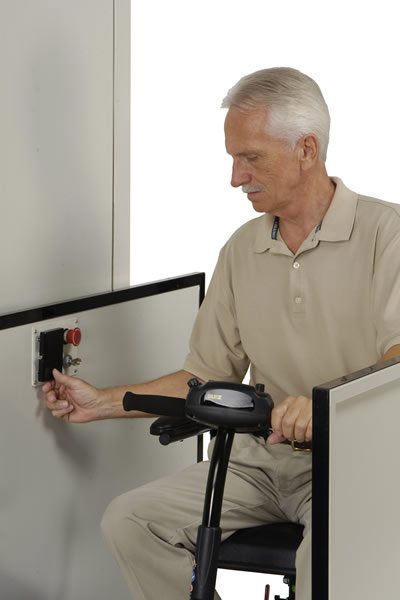

- Paddle Controls with Emergency Stop Button $0.00
- Paddle Controls with Emergency Stop Button $0.00
- Platform Control Options
- Emergency Alarm & Lighted Button $208.49
- Keylocks for Controls $34.49
- Emergency Alarm & Lighted Button $208.49
- Platform Options
- 42" High Side Walls $0.00
- Solid Platform with Safety Pan $0.00
- Inside Grab Bar $0.00
- 42" High Side Walls $0.00
- Ramp Type & Pit Switch
- Fixed Ramp $0.00
- Automatic Ramp $0.00
- No Ramp with Pit Switch Option $123.49
- Fixed Ramp $0.00
- Landing Controls
- Call/Send Control Station (each) $119.00
- Wireless Call/Send Control Stations (pair) $479.00
- Keylocks for Controls (each) $34.00
- Call/Send Control Station (each) $119.00
- Landing Gate
- Landing gates below include an interlock and a call/send control built into the gate. $0.00
- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Keylocks for Controls (each) $34.00
- Landing gates below include an interlock only. $0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Keylocks for Controls (each) $34.00
- Landing gates below include an interlock and a call/send control built into the gate. $0.00
- Fire Rated Doors
- No Door $0.00
- Fire-Rated Hoistway Door with EMI - Left (each) $2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each) $2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each) $2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each) $2,219.00
- No Door $0.00
- Interlocks
- Surface mount EMI interlocks below are for a customer provided door or gate. $0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate. $0.00
- Top Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Top Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Other Interlock Options $0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each) $139.00
- Wiring For Interlock (per landing) $159.00
- Surface mount EMI interlocks below are for a customer provided door or gate. $0.00
- Accessories
- Anchor Bolt Kit $0.00
- Tower Braces $154.49
- 3rd Stop Wiring Charge $492.49
- Phone Jack $138.49
- Emergency Light $138.49
- Fascia Panel (per foot) $59.00
- Automatic Door Opener - Requires Upgraded Electronics $2,349.00
- Anchor Bolt Kit $0.00
- Additional Delivery Services
- Free Liftgate Service on 53" Units As Requested $0.00
- Free Liftgate Service on 53" Units As Requested $0.00
