Call (888) 301-2603 for buying advice and our lowest prices!
Price
$4,799.00
(Free Shipping)
Product Name
AmeriGlide Atlas Vertical Lift [Residential]
Warranty
| Weight Limit | 550 lb |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Direct Worm-Gear & Screw-Nut |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | None Available |
| Keyed Platform Control | Included |
| Call-Send Controls | Optional Call-Send, Call-Send with Key, Toggle, Toggle with Key |
| Platform Type | Expanded Metal |
| Platform Size | 34" x 54" |
| Optional Platform Sizes | 40" x 54" |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | Automatic Folding |
| Grab Rail | Included |
| Guard Panel | Optional |
| Maximum Stops | 3 |
![AmeriGlide Hercules II Vertical Lift [Residential]](/cache/1307732417000/resources/product/18/picture-thumb.jpg)
![AmeriGlide Hercules II Vertical Lift [Commercial]](/cache/1307732416000/resources/product/17/picture-thumb.jpg)
![AmeriGlide Atlas Vertical Lift [Residential]](/cache/1307732421000/resources/product/4/picture.jpg)

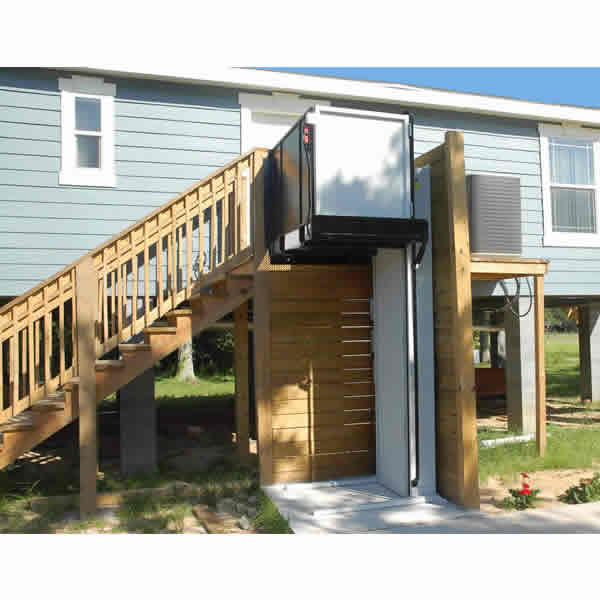

The AmeriGlide Atlas Residential Vertical Lift lift comes with a standard lift height of 72" and can be upgraded to lift to heights of 96", 120", or even 144"! This makes it the tallest residential unit on the market. The Atlas Residential comes with an expanded metal platform that can be seen through. You can upgrade it to a solid platform if code requires, however. In fact, there are numerous options you can add on to this vertical lift to meet local building codes across the US and Canada.
Lift Options Available
- Lifting Height
- 72" Maximum Lift Height $0.00
- 96" Maximum Lift Height $1,700.00
- 120" Maximum Lift Height $2,250.00
- 144" Maximum Lift Height $3,000.00
- 72" Maximum Lift Height $0.00
- Tower Orientation
- Tower On The Left $0.00
- Tower On The Right $0.00
- Tower On The Left $0.00
- Power Source
- AC Powered $0.00
- AC Powered with DC Battery Backup (Batteries Not Included) $1,571.43
- AC Powered $0.00
- Platform Size
- 34" x 54" Platform $0.00
- 40" x 54" Platform (For Adjacent Access Only) $0.00
- 34" x 54" Platform $0.00
- Platform Access
- Straight Through $0.00
- 90° Adjacent Access $228.58
- Same Side Entry / Exit (requires Solid End Wall) $471.43
- Straight Through $0.00
- Platform Gate
- No Platform Gate $0.00
- Platform Gate with Interlock $928.58
- No Platform Gate $0.00
- Platform Controls
- Paddle Controls with Emergency Stop Button $0.00
- Paddle Controls with Emergency Stop Button $0.00
- Platform Control Options
- Keylock for Platform Controls $0.00
- Backlit Emergency Stop Button $100.00
- Keylock for Platform Controls $0.00
- Platform Options
- Automatic Ramp for Ground to Platform Transition $0.00
- Solid Hand Rail $185.72
- Solid End Wall $314.29
- Control Wall Extension $314.29
- Solid Platform $271.43
- Solid Platform with Safety Pan $485.72
- Inside Grab Bar - 48" $107.15
- Automatic Ramp for Ground to Platform Transition $0.00
- Landing Controls
- Pushbutton Call Control (each) $135.00
- Keyed Pushbutton Call Control (each) $232.50
- Toggle Call & Send Control (each) $195.00
- Keyed Toggle Call & Send Control (each) $285.00
- Pushbutton Call Control (each) $135.00
- Landing Gate
- No Landing Gate $0.00
- Left Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control $1,185.72
- Right Swing Landing Gate - with Interlock & Keyed Pushbutton Call Control $1,185.72
- Left Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control $1,242.86
- Right Swing Landing Gate - with Interlock & Keyed Toggle Call/Send Control $1,242.86
- No Landing Gate $0.00
- Landing Gate Options
- Oversized Upper Landing Gate Upcharge $378.58
- Oversized Upper Landing Gate Upcharge $378.58
- Interlocks
- Additional Interlock (each) $450.00
- Additional Interlock (each) $450.00
- Other Options
- 3 Stop Wiring Charge $450.00
- Batteries for Backup System $366.65
- 3 Stop Wiring Charge $450.00
- Additional Delivery Services
- Trucking Terminal or Commercial Location with Loading Dock $0.00
- Liftgate Delivery, 28" & 52" Units Only $279.00
- Limited Access Delivery Charge $109.00
- AK, HI, PR, or International - Please Call for Quote $0.00
- Trucking Terminal or Commercial Location with Loading Dock $0.00
Product Reviews
| 1 review | ||
|
|
|
0 |
|---|---|---|
|
|
|
1 |
|
|
|
0 |
|
|
|
0 |
|
|
|
0 |
Sort by
Nice looking unit and well built. |
|
|
Apr 1, 2010 5:00 PM
|
|
|---|---|
| Jim the contractor from Charleston, WV. would recommend this to a friend. | |
| A Little About Myself |
Contractor
|
| Pros |
Safe & Sturdy
|
| Cons |
Heavy
|
|
Used in our church to access library and stage. It's easy to install but it is kind of heavy.
|
|
| 4 of 5 people found this review helpful | |
