Call (888) 300-0982 for buying advice and our lowest prices!
Price
$9,499.00
(Free Shipping)
On Sale!
Product Name
AmeriGlide Atlas Vertical Lift [Commercial]
Warranty
| Weight Limit | 550 lb |
| Portable | No |
| Arrives Assembled | No |
| Drive System | Direct Worm-Gear & Screw-Nut |
| Battery Powered Option | Yes |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Included |
| Alarm Button | Audible Alarm Included |
| Keyed Platform Control | Included |
| Call-Send Controls | Included One Direction with Key x2, Optional Two Direction Toggle, Two Direction Toggle with Key |
| Platform Type | Solid |
| Platform Size | 34" x 54" |
| Optional Platform Sizes | 40" x 54" |
| Platform Configuration | Straight-Thru Access |
| Optional Platform Configurations | Adjacent Access |
| Upper Landing Gate | Optional |
| Upper Access Ramp | None Available |
| Lower Access Ramp | 18" Fixed Toeplate |
| Grab Rail | Optional |
| Guard Panel | Included |
| Maximum Stops | 3 |
![AmeriGlide Hercules II Vertical Lift [Commercial]](/cache/1307732416000/resources/product/17/picture-thumb.jpg)

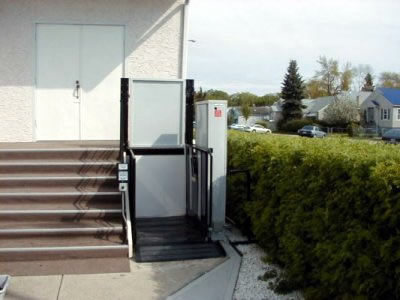

![AmeriGlide Atlas Vertical Lift [Commercial]](/cache/1248375780000/resources/product/11/picture.jpg)
Look no further than the AmeriGlide Atlas for a lift that can meet all major codes for commercial use and is capable of lifting up to heights of 144". And look below for the largest number of options, options that allow the AmeriGlide Atlas to not only meet commercial codes across the US and Canada, but also allow it to meet the specific needs of your clients. You won't find options like Fire Rated Doors and Oversized Landing Gates anywhere else.
Lift Options Available
- Lifting Height
- 96" Maximum Lift Height $0.00
- 120" Maximum Lift Height $571.42
- 144" Maximum Lift Height $1,321.42
- 96" Maximum Lift Height $0.00
- Tower Orientation
- Tower On The Left $0.00
- Tower On The Right $0.00
- Tower On The Left $0.00
- Power Source
- AC Powered $0.00
- AC Powered with DC Battery Backup (Batteries Not Included) $1,571.43
- AC Powered $0.00
- Platform Size
- 34" x 54" Platform $0.00
- 40" x 54" Platform (For Adjacent Access Only) $0.00
- 34" x 54" Platform $0.00
- Platform Access
- Straight Through $0.00
- Adjacent Access $228.58
- Same Side Entry / Exit (also requires Solid End Wall) $471.43
- Straight Through $0.00
- Platform Gate
- No Platform Gate $0.00
- Platform Gate $478.58
- No Platform Gate $0.00
- Platform Controls
- Paddle Controls with Emergency Stop Button $0.00
- Paddle Controls with Emergency Stop Button $0.00
- Platform Control Options
- Keylock for Platform Controls $0.00
- Audible Emergency Alarm & Light Package with Backlit Emergency Stop Button $0.00
- Keylock for Platform Controls $0.00
- Platform Options
- 18" Toeplate for Ground to Platform Transition $0.00
- Full Length Side Walls $0.00
- Solid Platform $0.00
- Solid Platform with Safety Pan $214.29
- Solid End Wall $314.29
- Inside Grab Bar - 48" $107.15
- 18" Toeplate for Ground to Platform Transition $0.00
- Landing Controls
- Upper Keyed Pushbutton Call Control $0.00
- Lower Keyed Pushbutton Call Control $0.00
- Additional Pushbutton Call Control (each) $135.00
- Additional Keyed Pushbutton Call Control (each) $230.00
- Additional Toggle Call & Send Control (each) $195.00
- Additional Keyed Toggle Call & Send Control (each) $285.00
- Upper Keyed Pushbutton Call Control $0.00
- Landing Gate
- Left Swing Upper Landing Gate $507.15
- Right Swing Upper Landing Gate $507.15
- Lower Non-Fire Door with Interlock $2,107.15
- Lower Fire Door with Interlock $3,728.58
- Upper Non-Fire Door with Interlock $2,107.15
- Upper Fire Door with Interlock $3,728.58
- Left Swing Upper Landing Gate $507.15
- Landing Gate Options
- Oversized Upper Landing Gate Upcharge $378.58
- Oversized Upper Landing Gate Upcharge $378.58
- Interlocks
- Upper and Lower Interlocks $0.00
- Additional Interlocks (each) $450.00
- Upper and Lower Interlocks $0.00
- Additional Options
- 3rd Stop Wiring Charge $450.00
- Batteries for Backup System $366.65
- 3rd Stop Wiring Charge $450.00
- Additional Delivery Services
- Trucking Terminal or Commercial Location with Loading Dock $0.00
- Liftgate Delivery, 28" & 52" Units Only $279.00
- Limited Access Delivery Charge $109.00
- AK, HI, PR, or International - Please Call for Quote $0.00
- Trucking Terminal or Commercial Location with Loading Dock $0.00
Product Reviews
This product currently has no reviews. Would you like to leave one?
